ABB IRB 1090 3.5/0.58
Robot details

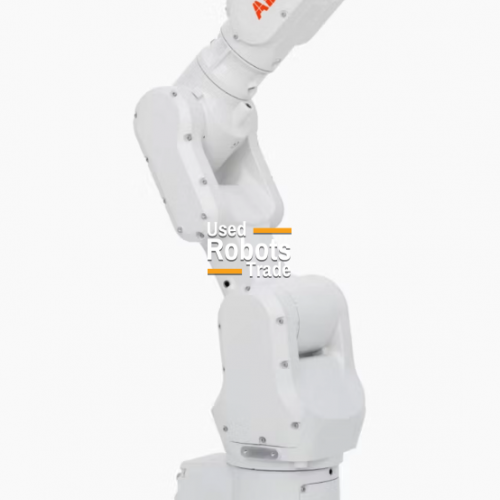

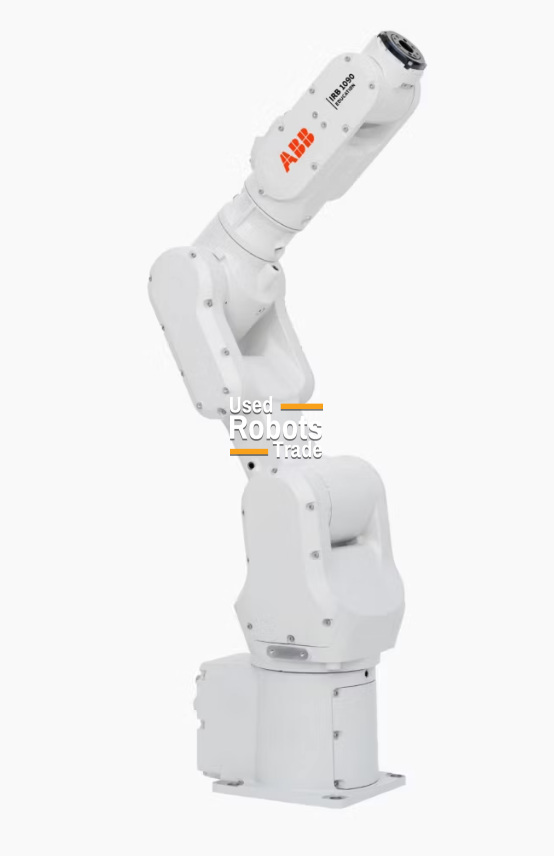

The ABB IRB 1090‑3.5/0.58 is a compact 6‑axis industrial robot designed to deliver high reliability, precision, and flexibility for small‑payload automation tasks. It is particularly suitable for companies that need an entry‑level industrial robot that is easy to integrate, cost‑effective, and robust.
With a maximum payload of 3.5 kg and a reach of 580 mm, the ABB IRB 1090 provides an excellent balance between working range and compact design, making it ideal for machine tending, pick & place, assembly, and basic handling operations.
Driven by the ABB IRC5 controller, the IRB 1090 benefits from proven ABB motion technologies such as TrueMove™ and QuickMove™, ensuring smooth trajectories, accurate positioning, and reduced cycle times. The solid mechanical design guarantees long‑term stability even in demanding industrial environments.
Thanks to its low total cost of ownership, simplified programming, and flexible mounting options, the ABB IRB 1090‑3.5/0.58 is an ideal solution for SMEs, automation integrators, and educational or training applications.
Robot applications
TECHNICAL DATA – ABB IRB 1090‑3.5/0.58
- Robot type: 6‑axis articulated industrial robot
- Maximum payload: 3.5 kg
- Maximum reach: 580 mm
- Repeatability: ±0.02 mm
- Number of axes: 6
- Robot weight: approx. 20 kg
- Protection rating: IP40
- Controller: ABB IRC5 Compact
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Space requirement: Compact footprint for bench‑top or enclosed cell installation
TYPICAL APPLICATIONS
- Machine tending
- Pick and place operations
- Small parts assembly
- Material handling
- Packaging and end‑of‑line tasks
- Educational and training robotic systems
- Light industrial automation
