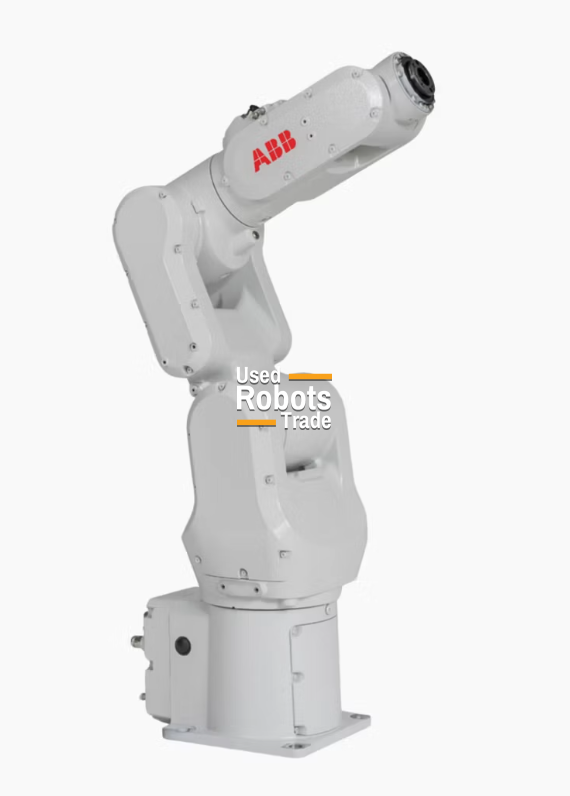

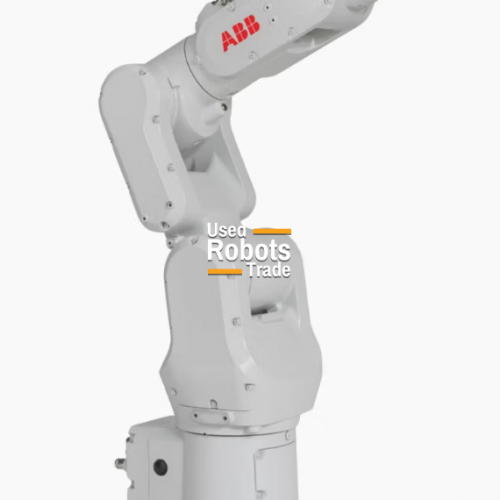

ABB IRB 1100 4/0.58
Robot details
The ABB IRB 1100‑4/0.58 is a compact and high‑performance 6‑axis industrial robot, designed to deliver high speed, excellent precision, and flexible integration in space‑constrained production environments. It is the ideal solution for manufacturers looking for efficient automation with extended reach and dynamic motion control.
Featuring a maximum payload of 4 kg and an extended reach of 580 mm, the IRB 1100‑4/0.58 offers improved working envelope while maintaining a slim and lightweight design. Its optimized motors and rigid mechanical structure enable fast accelerations, smooth paths, and reduced cycle times, even in demanding high‑speed applications.
Controlled by the ABB IRC5 Compact controller, the robot benefits from ABB’s proven TrueMove™ and QuickMove™ technologies, ensuring accurate path control and synchronized motion. Thanks to its low energy consumption, compact footprint, and multiple mounting options, the IRB 1100‑4/0.58 fits perfectly into modern modular and smart factory layouts.
Robot applications
TECHNICAL DATA – ABB IRB 1100‑4/0.58
- Robot type: 6‑axis articulated industrial robot
- Maximum payload: 4 kg
- Maximum reach: 580 mm
- Repeatability: ±0.01 mm
- Number of axes: 6
- Robot weight: approx. 20 kg
- Protection rating: IP40
- Controller: ABB IRC5 Compact
- Motion performance: High‑speed motor control with ABB QuickMove™ and TrueMove™
- Footprint: Compact design optimized for dense automation cells
TYPICAL APPLICATIONS
- High‑speed pick and place
- Precision assembly
- Machine tending
- Small parts handling
- Packaging and labeling
- Electronics and consumer goods production
- Compact and modular automation cells
