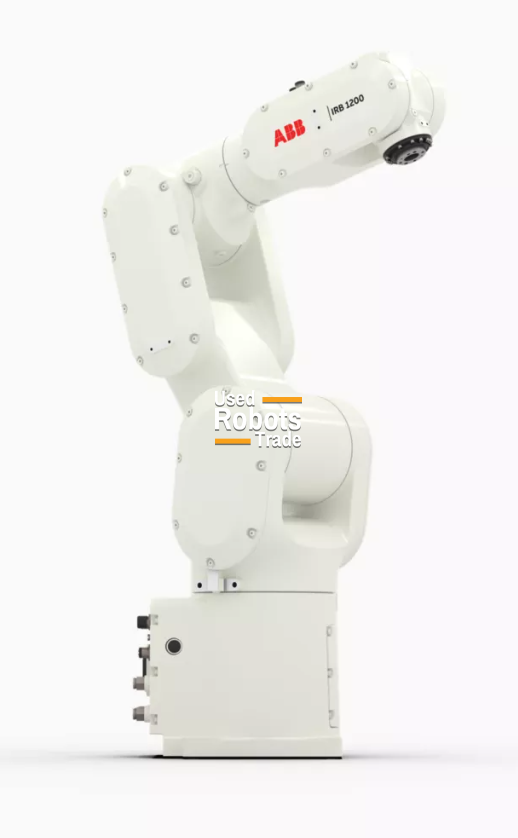

ABB IRB 1200 8/0.90
Robot details
The ABB IRB 1200‑8/0.90 is a versatile 6‑axis industrial robot designed for applications that require higher payload capacity and extended reach, while maintaining a compact footprint and high operational reliability. It is part of the proven IRB 1200 series, widely used in industrial environments where flexibility and robustness are essential.
With a maximum payload of 8 kg and a reach of 900 mm, the IRB 1200‑8/0.90 significantly expands the working envelope compared to smaller compact robots, making it ideal for machine tending, material handling, assembly, and packaging applications. Its rigid mechanical design and optimized motor system ensure smooth motion, stable accuracy, and consistent performance even during continuous high‑duty cycles.
Powered by the ABB IRC5 Compact controller, the robot integrates advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise path control, optimized speed profiles, and reduced cycle times. Flexible mounting options and low maintenance requirements make the IRB 1200‑8/0.90 easy to integrate into both new automation cells and existing production lines.
Robot applications
TECHNICAL DATA – ABB IRB 1200‑8/0.90
- Robot type: 6‑axis articulated industrial robot
- Maximum payload: 8 kg
- Maximum reach: 900 mm
- Repeatability: ±0.02 mm
- Number of axes: 6
- Robot weight: approx. 55 kg
- Protection rating: IP40
- Controller: ABB IRC5 Compact
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation options: Floor, wall, inverted, angled mounting
TYPICAL APPLICATIONS
- Machine tending (CNC, injection molding, press loading)
- Material handling with higher payloads
- Assembly operations
- Packaging and end‑of‑line automation
- Pick and place in extended work areas
- General industrial automation systems
