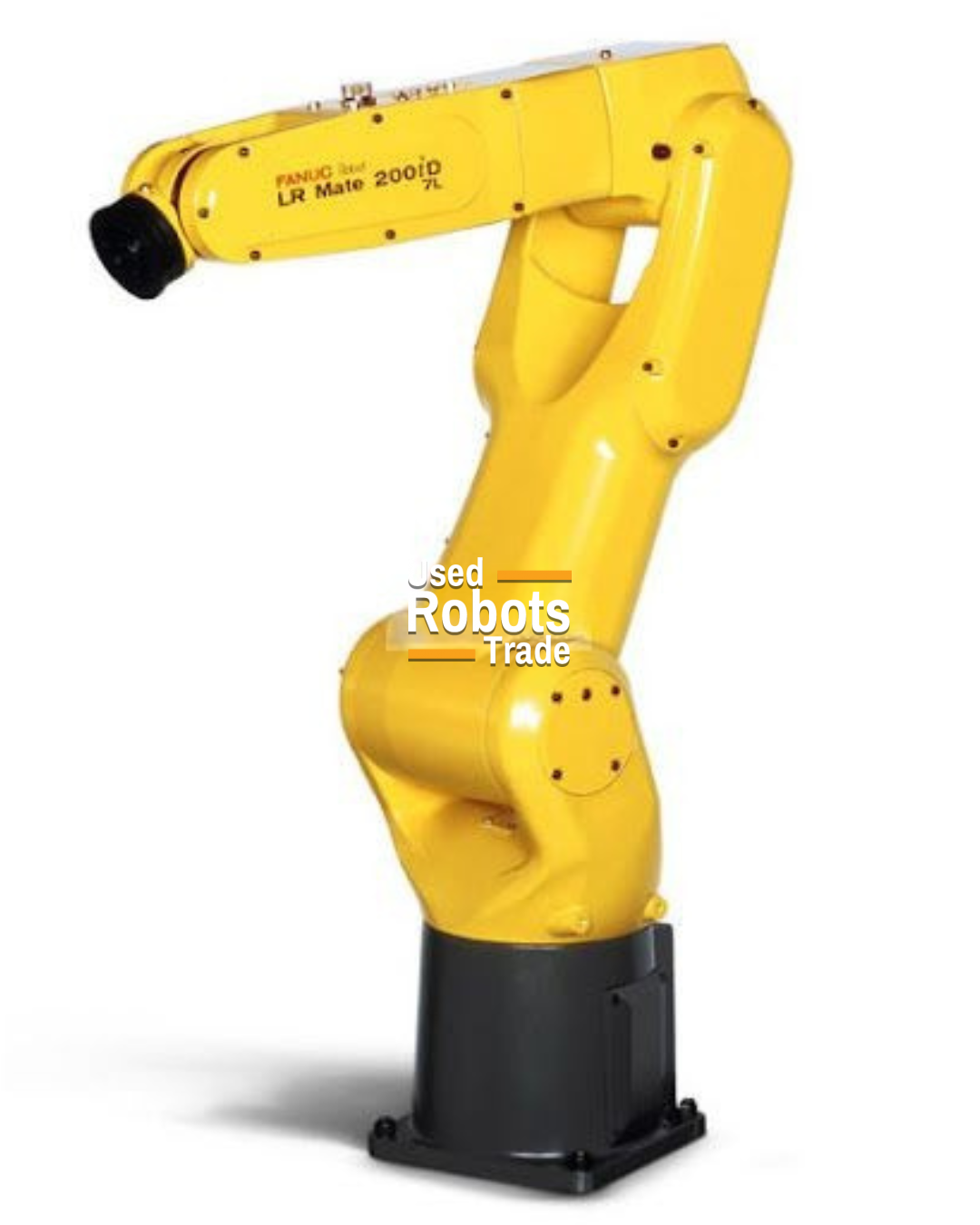

Fanuc Lrmate 200iD 7L
Robot details
The FANUC LR Mate 200iD/7L is a compact, long-reach 6-axis industrial robot designed for high-speed handling of small payloads. It offers a maximum payload of 7 kg and an extended reach of 911 mm, making it ideal for applications such as assembly, material handling, machine tending, pick & place, and packaging. This model features a slim arm design with integrated cabling and piping for easy installation in confined spaces.
Equipped with the advanced R-30iB controller, it supports intelligent options like vision systems and force sensing, as well as specialized application packages. Standard IP67 protection ensures durability in harsh environments, while its lightweight structure (27 kg) and high rigidity deliver smooth, vibration-free motion even at high speeds. With a repeatability of ±0.03 mm, the LR Mate 200iD/7L guarantees precision and reliability for flexible automation solutions.
Robot applications
Main specifications
Maximum Load of Robot: 7 Kg
Number of axis: 6
Maximum horizontal reach: 911 mm
Repeatability: ± 0.018 Based on ISO9283
Controller: R-30iB
Motion range (°)
Axis 1: 360°
Axis 2: 245°
Axis 3: 430°
Axis 4: 380°
Axis 5: 250°
Axis 6: 720°
Maximum speed (°/s)
Axis 1: 370°/s
Axis 2: 310°/s
Axis 3: 410°/s
Axis 4: 550°/s
Axis 5: 545°/s
Axis 6: 1000°/s
Robot applications
Material handling
Assembly
