FANUC M410iB /700
Robot details
The FANUC M-410iB/700 is a high-performance industrial palletizing robot specifically designed for ultra-heavy payload handling, palletizing, depalletizing, and material handling applications. With a maximum payload capacity of 700 kg and a reach of 3,143 mm, it is one of the most powerful robots in the FANUC M-410 palletizing series. The robot is engineered to move heavy products quickly and accurately while maintaining reliability in demanding industrial environments.
Paired with the FANUC R-30iB Plus Controller, the M-410iB/700 provides advanced motion control, high-speed communication, flexible integration, and enhanced user-friendly programming through the iPendant Touch interface.
- Ultra-heavy payload capacity: 700 kg
- Maximum horizontal reach: 3,143 mm
- 4 controlled axes
- Excellent repeatability: ±0.05 mm
- Designed specifically for palletizing and depalletizing
- Optimized for handling bags, cartons, containers, drums, and pallet layers
- Hollow wrist design available for improved cable management
- Compact footprint relative to payload capacity
- Low maintenance servo-driven system
- Floor-mounted installation
- IP54 protection rating for robot body and wrist
- Integrated I/O signals on the upper arm (8 inputs / 8 outputs)
R-30iB Plus Controller Characteristics
The FANUC R-30iB Plus controller is one of FANUC's most advanced control platforms and offers:
Hardware Features
- High-performance CPU
- Faster processing capability
- Multi-task operation
- Compact cabinet design
- Support for multiple fieldbus networks
- Ethernet connectivity
- Remote diagnostics capability
- Integrated safety functions
Software Features
- FANUC HandlingTool Software
- Intelligent Motion Control
- Collision Detection
- DCS (Dual Check Safety)
- Vision Integration Compatibility
- Force Sensor Integration
- Robot Monitoring and Diagnostics
- Energy Consumption Monitoring
Operator Interface
- iPendant Touch touchscreen
- Intuitive graphical interface
- Simplified robot programming
- USB data backup and transfer
- Web-based diagnostics support
Electrical Specifications
- Input Voltage (3 Phase): 380–575 VAC
- Frequency: 50/60 Hz
-

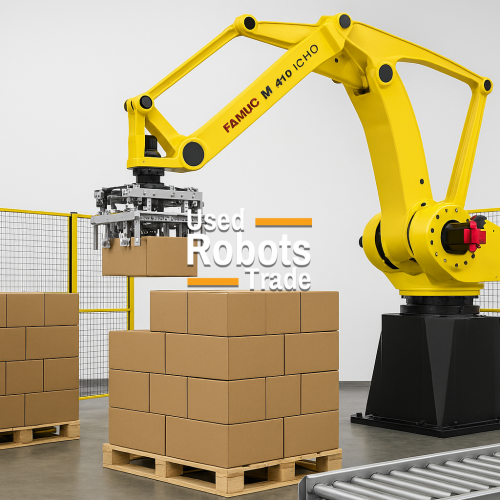

The FANUC M-410iB/700 is widely used in:
Palletizing
- Finished goods palletizing
- Mixed-load palletizing
- High-speed warehouse automation
-
Material Handling
- Heavy part transfer
- Large container movement
- Industrial logistics
-
Food and Beverage
- Bottle palletizing
- Beverage crate handling
- Bulk packaging operations
-
Building Materials
- Cement bag palletizing
- Brick handling
- Construction material logistics
-
Manufacturing
- Heavy component handling
- End-of-line packaging
- Automated warehouse systems
Robot applications
Technical Data Sheet
Robot Technical Specifications
| Specification | Value | |
|---|---|---|
| Robot Model | FANUC M-410iB/700 | |
| Robot Type | 4-Axis Articulated Palletizing Robot | |
| Payload Capacity | 700 kg | |
| Maximum Reach | 3,143 mm | |
| Controlled Axes | 4 | |
| Repeatability | ±0.05 mm | |
| Mounting Position | Floor | |
| Robot Weight | 2,700 kg | |
| Footprint | 1,080 × 1,030 mm | |
| Protection Rating | IP54 | |
| Ambient Temperature | 0°C to 45°C | |
| Noise Level | <70 dB | |
| Controller | R-30iB Plus |
Axis Data and Motor Speeds
| Axis | Motion Range | Maximum Speed | |
|---|---|---|---|
| J1 | 360° | 60°/s | |
| J2 | 144° | 60°/s | |
| J3 | 136° | 60°/s | |
| J4 | 540° | 120°/s |
Load Characteristics
| Parameter | Value | |
|---|---|---|
| Maximum Wrist Payload | 700 kg | |
| Allowable Wrist Inertia | 490 kg·m² | |
| Drive Method | AC Servo Motors | |
| Position Repeatability | ±0.05 mm |
Advantages
- Extremely high payload capability
- Excellent cycle times for heavy palletizing
- Industry-leading reliability
- Reduced maintenance requirements
- Flexible integration with automated production lines
- Advanced diagnostic capabilities through the R-30iB Plus controller
- High precision despite heavy loads
- Suitable for 24/7 industrial operation
