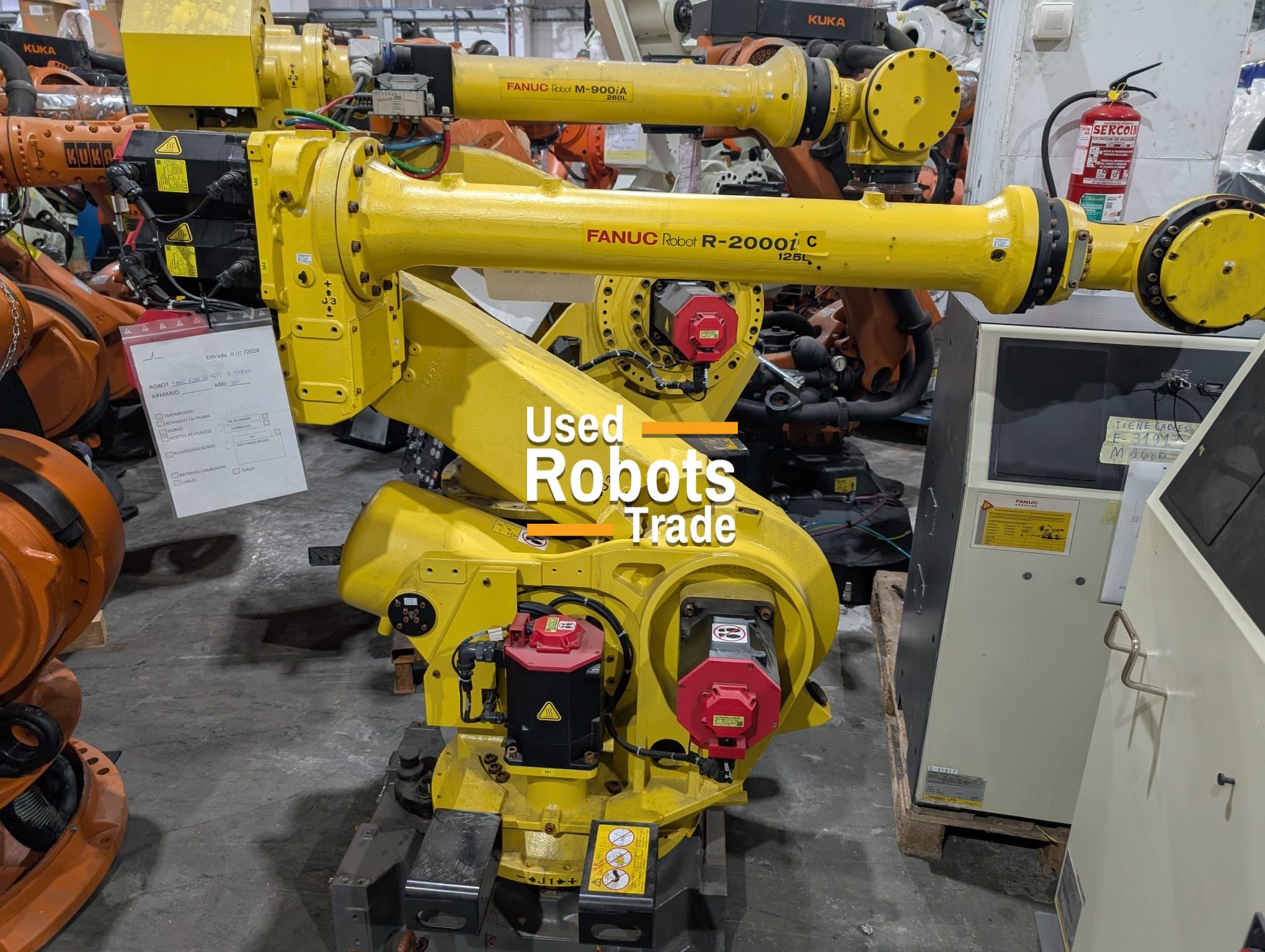

Fanuc R2000iC 125L

Robot details

The Fanuc R-2000 series is designed for material handling applications and spot welding, with a load capacity ranging from 100 to 270 kg. It features an extended reach while maintaining a small footprint to fit seamlessly into any plant area.

The R-2000iC/125L is a 6-axis industrial robot with a wide reach of up to 3100 mm, offering high flexibility and precision. It has a large payload capacity of 125 kg, making it ideal for high-speed welding processes, assembly, part transfer, material removal, loading, and dispensing. This robot provides high performance, improved system operating times, and easy installation.

The R-30iB control system represents the latest generation of advanced, efficient, compact, and stackable FANUC technology. It enhances productivity with modern integrated hardware and over 250 software functions. Designed to be more intuitive, it optimizes power to reduce energy consumption and delivers high performance in cycle times with greater speed and precision.

This system includes a high-performance integrated programmable PMC control system that can access the complete robot I/O system. This allows for easy separation or asynchronous control of peripheral devices without negatively impacting robot performance. Various mounting positions save space and facilitate easy integration into production cells and the installation of multiple robots. The R-30iB control systems use FANUC's patented secure software, ensuring protection against viruses, hackers, and stability issues. The iPendant Touch is intuitive, smarter, and easier to use.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Palletising
• Assembly of parts

Main specifications

Maximum Load of Robot: 125 kg
Number of axis: 6
Maximum horizontal reach: 3100 mm
Repeatability:± 0.05 mm
Controller: R30iB Plus

Motion range (°)

Axis J1: 370°
Axis J2: 136°
Axis J3: 301°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 130°/s
Axis J2: 115°/s
Axis J3: 125°/s
Axis J4: 180°/s
Axis J5: 180°/s
Axis J6: 260°/s
