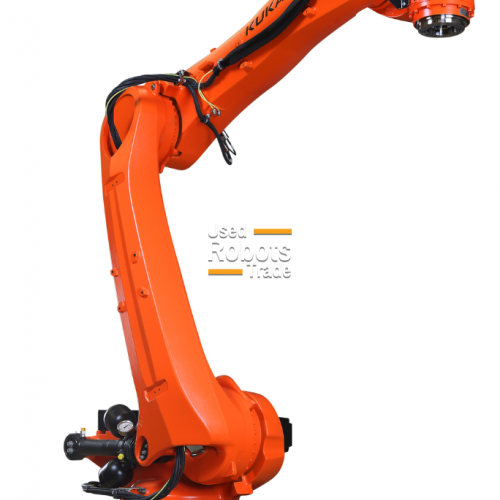

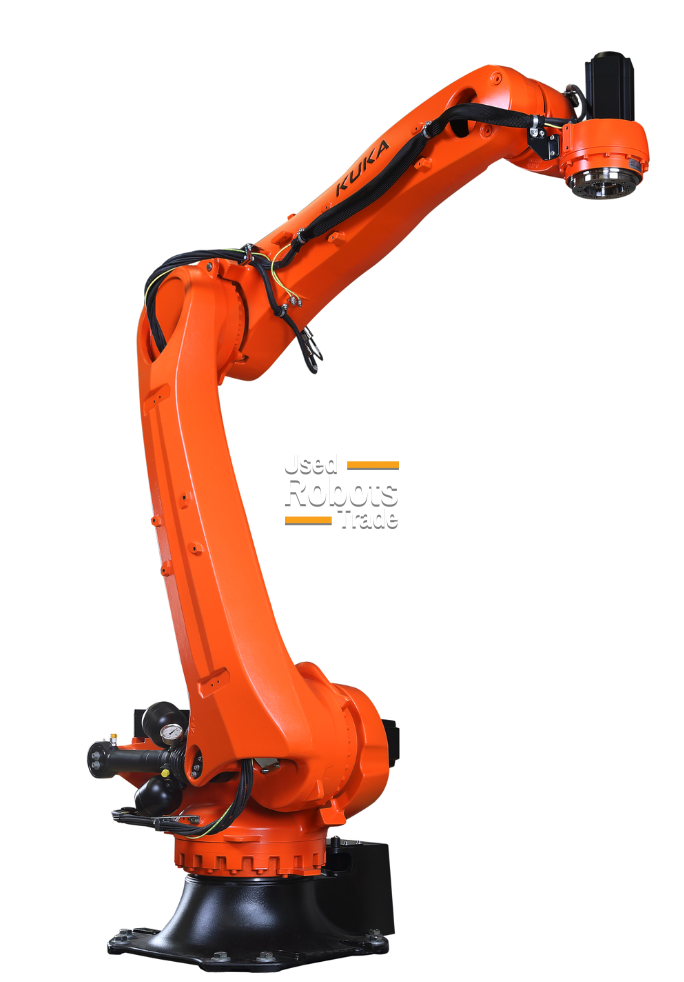

KUKA KR140 R3200-2 PA
Robot details
The KUKA KR 140 R3200‑2 PA is a 5‑axis industrial palletizing robot specifically designed for high‑payload palletizing and depalletizing applications, where long reach, high stability, and continuous operation are required.
With a payload capacity of 140 kg and a reach of 3,200 mm, the KR 140 R3200‑2 PA is ideal for palletizing heavy products such as bags, boxes, crates, trays, and industrial packages across multiple pallet positions and wide end‑of‑line layouts.
The PA (Palletizing Application) kinematic design is optimized for fast vertical movements, high stiffness, and repeatable stacking patterns, ensuring reliable performance even during continuous heavy‑load palletizing cycles.
The robot is powered by the KUKA KR C5 controller, providing high‑performance motion control, modern connectivity, and robust system architecture for advanced palletizing cells.
Palletizing Motion Concept and Performance
The KUKA KR 140 R3200‑2 PA is engineered for maximum throughput and reliability in industrial palletizing environments.
Key performance characteristics include:
- 4‑axis palletizing kinematics optimized for vertical stacking
- Smooth and stable up‑and‑down motion under heavy loads
- High repeatability for precise pallet patterns
- Reduced mechanical complexity compared to 6‑axis robots
- Excellent coverage of large palletizing areas
The long reach allows the robot to serve multiple pallets, conveyors, or stacking stations without additional linear axes.
Controller & Software – KUKA KR C5
The KUKA KR C5 controller is KUKA’s latest‑generation industrial robot controller, designed to support high‑performance palletizing and heavy‑duty material handling applications.
Controller Highlights:
- Compact and modular controller architecture
- High‑precision motion control for palletizing cycles
- Compatibility with palletizing software solutions
- Industry 4.0 connectivity and diagnostics
- Support for peripheral devices and safety systems
The KR C5 ensures fast commissioning, precise control, and long‑term reliability in high‑throughput palletizing environments.
Robot applications
| Parameter | Specification |
|---|---|
| Robot type | Industrial palletizing robot (PA version) |
| Axes | 5 |
| Payload | 140 kg |
| Maximum reach | 3,200 mm |
| Application class | Palletizing / depalletizing |
| Mounting options | Floor |
| Kinematic structure | Palletizing‑optimized (PA) |
| Design | Reinforced, high‑stiffness industrial structure |
Accuracy & Motion Control
| Parameter | Specification |
|---|---|
| Motion control | High‑precision palletizing motion |
| Repeatability | High, suitable for heavy palletizing |
| Path behavior | Smooth, stable, repeatable |
| Vertical motion | Optimized for stacking operations |
| Duty cycle | Continuous industrial operation |
Speed & Dynamic Performance
Motion dynamics are optimized for stability and heavy‑load palletizing rather than complex multi‑axis paths.
| Feature | Description |
|---|---|
| Axis motors | High‑torque industrial servo motors |
| Axis speed | Optimized for palletizing cycles |
| Acceleration | Balanced for load stability |
| Trajectory control | Vertical and rotational palletizing paths |
| Load handling | Optimized for medium‑to‑heavy products |
Controller & System
| Parameter | Specification |
|---|---|
| Controller | KUKA KR C5 |
| Control software | KUKA System Software (KSS) |
| Palletizing software | Supported |
| Fieldbus integration | Supported |
| Safety functions | Integrated industrial safety |
Typical Applications
- End‑of‑line palletizing
- Depalletizing operations
- Packaging and logistics
- Food & beverage palletizing
- Building materials handling
- Industrial goods palletizing
Key Benefits
- High payload capacity (140 kg)
- Long reach (3,200 mm) for multi‑pallet layouts
- ✅ True palletizing kinematics (5 axes)
- Stable and precise stacking motion
- Optimized PA configuration
- Advanced KR C5 controller architecture
- Proven KUKA palletizing reliability
