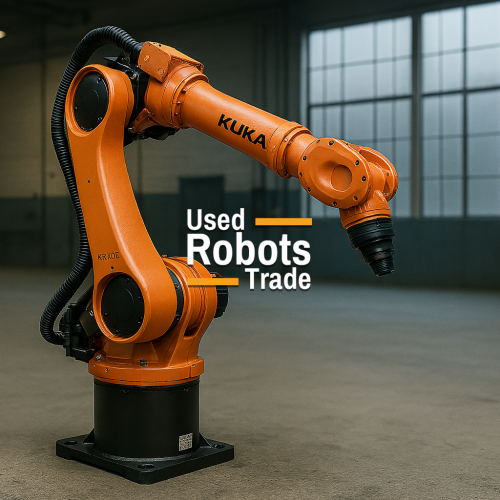

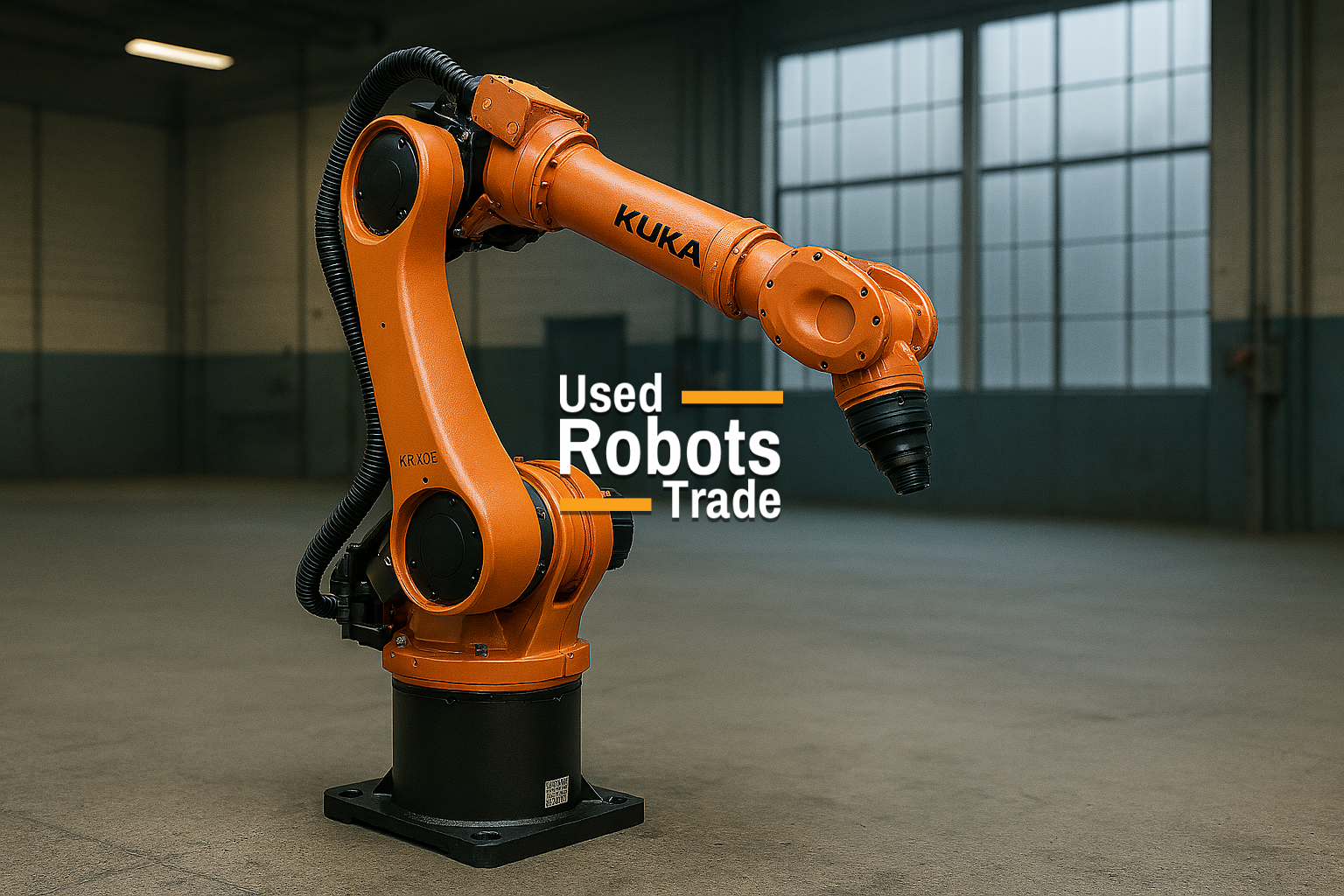

KUKA KR 20 R2010 KS‑F
Robot details
The KUKA KR 20 R2010 KS‑F is a 6‑axis industrial robot designed for high‑force, heavy‑duty applications, combining extra‑long reach, high payload capacity, and exceptional structural rigidity.
With a payload of 20 kg and an extended reach of 2,010 mm, the KR 20 R2010 KS‑F is ideal for material handling, machine tending, spot welding, press tending, and tooling applications where stability, stiffness, and process reliability are critical.
The KS‑F (KUKA Structural – Force) design features reinforced mechanics and optimized load paths, ensuring minimal deflection and high positioning accuracy, even under dynamic loads and demanding operating conditions.
The robot is powered by the KUKA KR C5 controller, KUKA’s latest‑generation control platform, delivering high‑performance motion control, advanced connectivity, and compact system architecture for modern industrial automation systems.
Motion Concept and Performance
The KUKA KR 20 R2010 KS‑F is optimized for stable, precise, and repeatable motion under load, rather than purely high‑speed operation.
Key motion characteristics include:
- High stiffness for force‑intensive applications
- Stable point‑to‑point and continuous path motion
- Excellent repeatability under payload
- Reduced vibration and structural deflection
- Reliable performance in continuous industrial duty cycles
The extra‑long reach of 2,010 mm allows the robot to service large workspaces while maintaining mechanical stability and process consistency.
Controller & Software – KUKA KR C5
The KUKA KR C5 controller is KUKA’s most advanced industrial robot controller, designed to support high‑performance and digitally integrated automation systems.
Controller Highlights:
- Compact and modular controller architecture
- High‑precision motion and path control
- Improved connectivity and Industry 4.0 readiness
- Support for external axes and complex automation cells
- Advanced diagnostics and integrated safety functions
The KR C5 ensures precise synchronization between robot motion and process forces, making it ideal for heavy‑duty applications.
Robot applications
| Parameter | Specification |
|---|---|
| Robot type | Industrial articulated robot (KS‑F heavy‑duty) |
| Axes | 6 |
| Payload | 20 kg |
| Maximum reach | 2,010 mm |
| Application class | Heavy‑duty industrial automation |
| Mounting options | Floor |
| Design | Reinforced, high‑rigidity, industrial‑grade |
| Parameter | Specification |
|---|---|
| Controller | KUKA KR C5 |
| Control software | KUKA System Software (KSS) |
| External axes support | Yes |
| Fieldbus integration | Supported |
| Safety functions | Integrated industrial safety |
Typical Applications
- Heavy material handling
- Machine loading and unloading
- Spot welding
- Press tending
- Tool handling
- Force‑controlled industrial processes
- Large‑workspace automation cells
Key Benefits
- Extra‑long reach with high payload
- KS‑F reinforced structure for force applications
- Stable and precise motion under load
- Advanced KR C5 controller architecture
- High reliability in demanding environments
- Proven KUKA heavy‑duty performance
