KUKA KR120 R3200-1 PA
Robot details

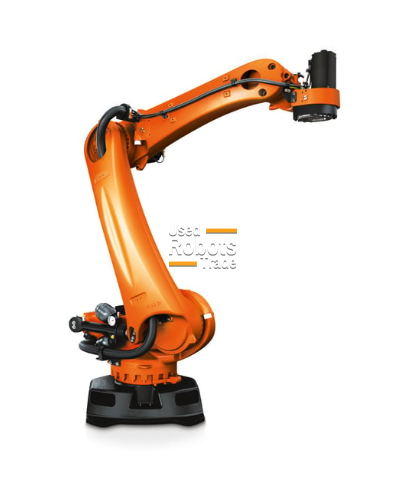

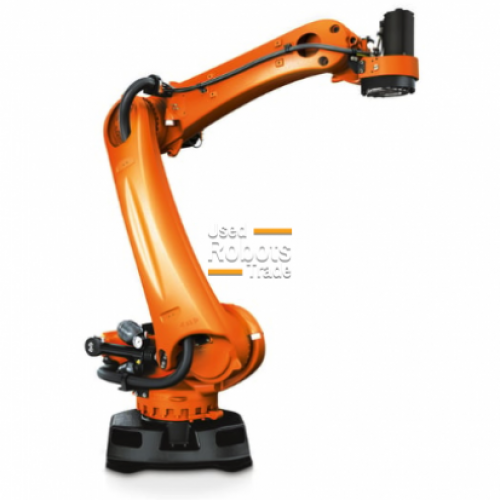

The KUKA KR 120 R3200‑1 PA is a 5‑axis industrial robot optimized for palletizing and depalletizing applications, designed to combine high payload capacity, long reach, and excellent stability in demanding end‑of‑line automation systems.
With a payload capacity of 120 kg and a reach of 3,200 mm, the KR 120 R3200‑1 PA is ideal for palletizing medium to heavy products, such as boxes, bags, trays, and industrial packages, across multiple pallet positions and wide palletizing areas.
The PA (Palletizing Application) configuration is specifically engineered for smooth vertical motion, high repeatability, and continuous operation, ensuring reliable performance even in high‑throughput palletizing environments.
The robot is powered by the KUKA KR C5 controller, providing high‑performance motion control, modern connectivity, and robust system architecture for advanced palletizing cells.
Palletizing Motion Concept and Performance
The KUKA KR 120 R3200‑1 PA is engineered for efficient, stable, and repeatable palletizing operations.
Key performance characteristics include:
- Palletizing‑optimized kinematics for vertical movements
- Smooth and stable handling of heavy loads
- High repeatability for precise stacking patterns
- Reliable operation in continuous duty cycles
- Excellent coverage of large palletizing zones
The long reach enables the robot to serve multiple pallets or conveyor lines without additional external axes, increasing system flexibility.
Controller & Software – KUKA KR C5
The KUKA KR C5 controller is KUKA’s latest‑generation industrial robot controller, designed to support high‑performance palletizing and material handling applications.
Controller Highlights:
- Compact and modular controller architecture
- High‑precision motion and path control
- Compatibility with palletizing software solutions
- Industry 4.0 connectivity and diagnostics
- Support for peripheral devices and safety systems
The KR C5 ensures fast commissioning, precise control, and long‑term reliability in demanding palletizing environments.
Robot applications
| Parameter | Specification |
|---|---|
| Robot type | Industrial palletizing robot (PA version) |
| Axes | 5 |
| Payload | 120 kg |
| Maximum reach | 3,200 mm |
| Application class | Palletizing / depalletizing |
| Mounting options | Floor |
| Design | Reinforced, palletizing‑optimized |
Accuracy & Motion Control
| Parameter | Specification |
|---|---|
| Motion control | High‑precision palletizing motion |
| Repeatability | High, suitable for palletizing accuracy |
| Path behavior | Smooth, stable, repeatable |
| Vertical motion | Optimized for stacking operations |
| Duty cycle | Continuous industrial operation |
Speed & Dynamic Performance
Motion dynamics are optimized for palletizing stability and throughput rather than aggressive acceleration.
| Feature | Description |
|---|---|
| Axis motors | High‑torque industrial servo motors |
| Axis speed | Optimized for palletizing cycles |
| Acceleration | Balanced for load stability |
| Trajectory control | Vertical and palletizing‑optimized paths |
| Load handling | Optimized for medium‑to‑heavy products |
Controller & System
| Parameter | Specification |
|---|---|
| Controller | KUKA KR C5 |
| Control software | KUKA System Software (KSS) |
| Palletizing software | Supported |
| Fieldbus integration | Supported |
| Safety functions | Integrated industrial safety |
Typical Applications
- End‑of‑line palletizing
- Depalletizing operations
- Packaging and logistics
- Food & beverage palletizing
- Building materials handling
- Industrial goods palletizing
Key Benefits
- High payload capacity (120 kg)
- Long reach (3,200 mm) for multi‑pallet layouts
- Stable and precise palletizing motion
- Optimized PA configuration
- Advanced KR C5 controller architecture
- Proven KUKA palletizing reliability
