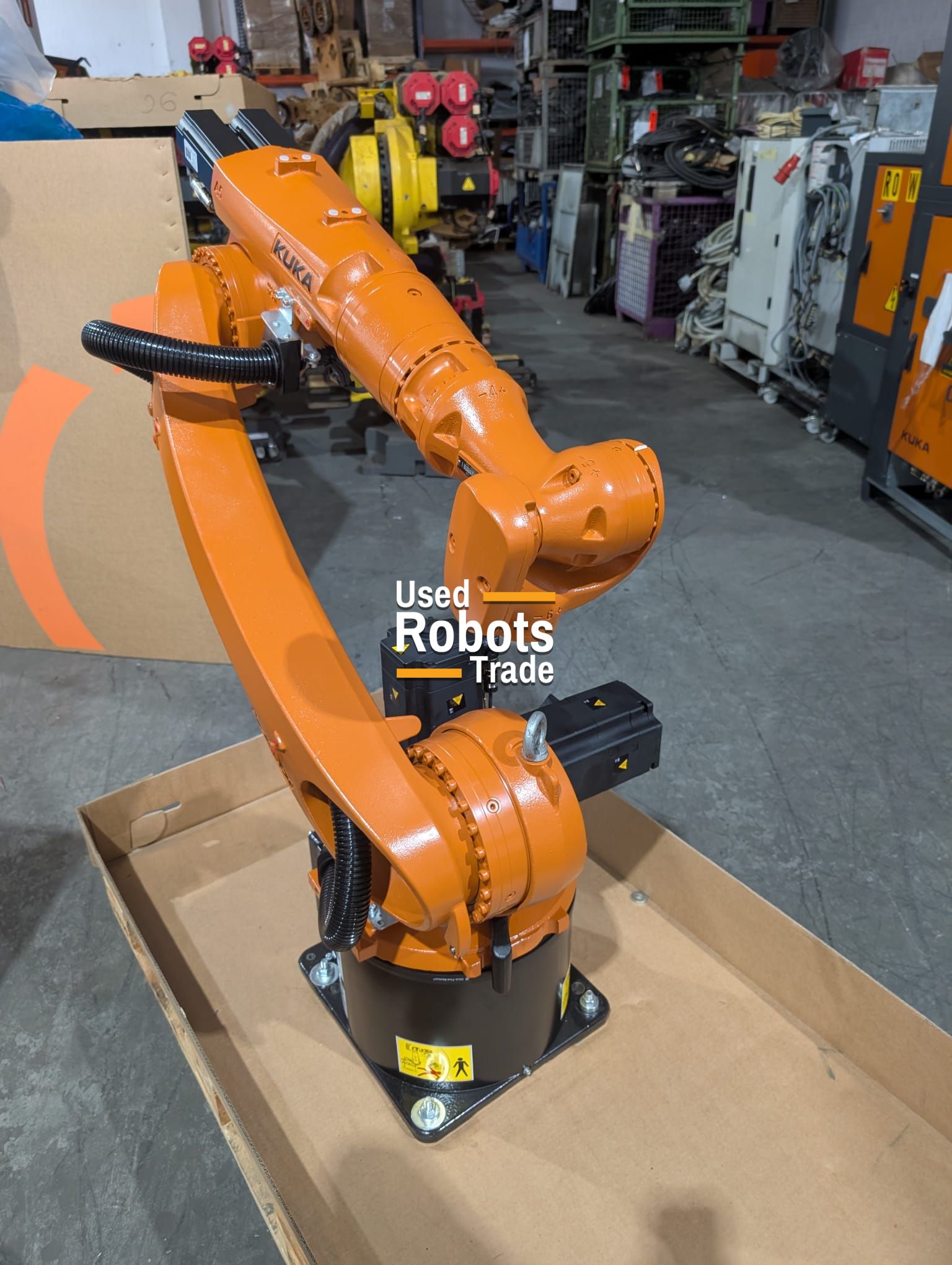

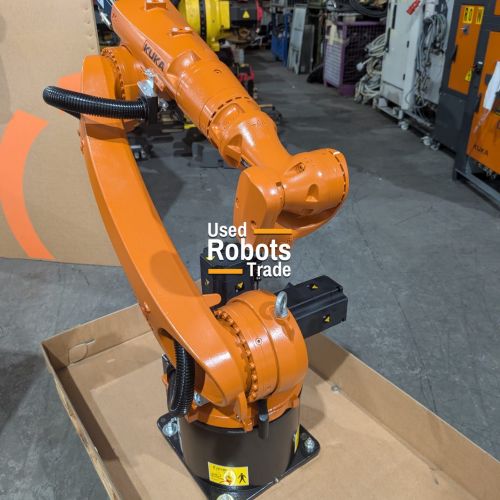

KUKA KR16 R2010-2
Robot details
The KUKA KR 16 R2010‑2 is a 6‑axis industrial robot designed for applications requiring extra‑long reach, reliable payload capacity, and high industrial performance in demanding automation environments.
With a payload of 16 kg and an extended reach of 2,010 mm, the KR 16 R2010‑2 is ideal for machine tending, material handling, assembly, and pick‑and‑place operations across large workspaces. Its robust mechanical structure ensures high accuracy, repeatability, and stability, even when operating at maximum reach.
The robot is powered by the KUKA KR C5 controller, KUKA’s latest‑generation control platform, offering high‑performance motion control, advanced connectivity, and compact system architecture designed for modern, digitally integrated manufacturing systems.
Motion Concept and Performance
The KUKA KR 16 R2010‑2 is optimized for industrial speed, stability, and repeatability, making it suitable for continuous, high‑throughput production processes.
Key motion characteristics include:
- Fast and precise point‑to‑point movements
- Smooth continuous path control
- High repeatability for accurate positioning
- Stable dynamics at extended reach and payload
The extra‑long reach allows efficient coverage of large work areas, reducing the need for additional linear axes or repositioning systems.
Controller & Software – KUKA KR C5
The KUKA KR C5 controller represents the latest evolution of KUKA’s industrial robot control technology and is designed for high‑performance, flexible automation systems.
Controller Highlights:
- Compact and modular controller architecture
- High‑precision motion and path control
- Improved connectivity and Industry 4.0 readiness
- Support for external axes and complex automation cells
- Advanced diagnostics and integrated safety functions
The KR C5 ensures precise robot control, high system availability, and long‑term operational reliability.
Robot applications
- Press tending
- Loading and unloading of parts
- Machining
- Handling of parts
- Polishing
- Measurement
- Assembly of parts
| Parameter | Specification |
|---|---|
| Robot type | Industrial articulated robot |
| Axes | 6 |
| Payload | 16 kg |
| Maximum reach | 2,010 mm |
| Application class | Industrial automation |
| Mounting options | Floor, wall, ceiling |
| Design | Rigid, industrial‑grade |
| Parameter | Specification |
|---|---|
| Controller | KUKA KR C5 |
| Control software | KUKA System Software (KSS) |
| External axes support | Yes |
| Fieldbus integration | Supported |
| Safety functions | Integrated industrial safety |
