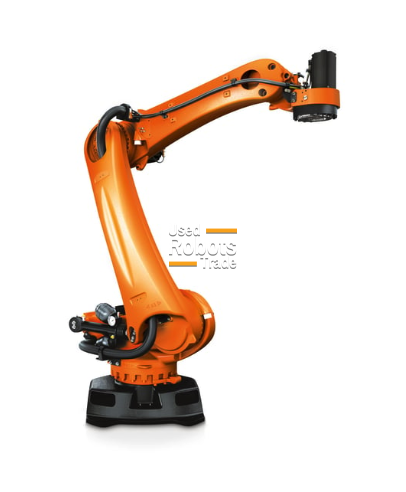

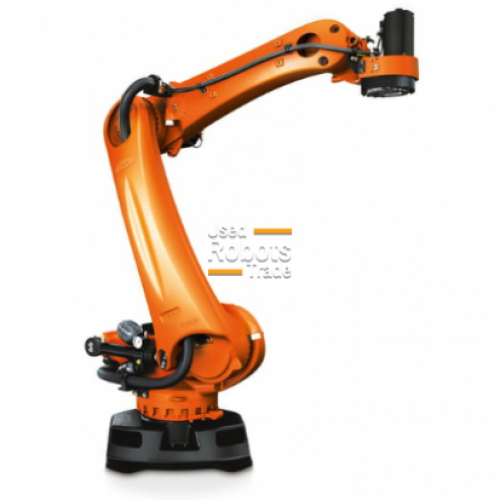

KUKA KR240 R3200-1 PA
Robot details
The KUKA KR 240 R3200‑1 PA is a 5‑axis industrial robot optimized for heavy‑duty palletizing and depalletizing applications, designed to combine very high payload capacity, long reach, and exceptional stability in demanding end‑of‑line automation systems.
With a payload capacity of 240 kg and a reach of 3,200 mm, the KR 240 R3200‑1 PA is ideal for palletizing heavy products, such as large boxes, bags, crates, and industrial loads, across multiple pallet positions and wide working areas.
The PA‑optimized design ensures smooth vertical motion, high repeatability, and reliable performance during continuous palletizing cycles, even with large and heavy loads.
The robot is powered by the KUKA KR C5 controller, delivering high‑performance motion control, modern connectivity, and robust system architecture for high‑throughput palletizing cells.
Palletizing Motion Concept and Performance
The KUKA KR 240 R3200‑1 PA is engineered for maximum throughput and stability in heavy‑payload palletizing operations.
Key performance characteristics include:
- Optimized palletizing kinematics for heavy loads
- Smooth and stable vertical movements
- High repeatability for precise stacking patterns
- Reliable operation during continuous duty cycles
- Excellent coverage of large palletizing areas
The long reach allows the robot to serve multiple pallets, conveyor lines, or stacking zones without additional external axes.
Controller & Software – KUKA KR C5
The KUKA KR C5 controller is KUKA’s most advanced industrial robot controller, designed to support high‑performance palletizing and heavy‑duty material handling applications.
Controller Highlights:
- Compact and modular controller architecture
- High‑precision motion and path control
- Compatibility with palletizing software packages
- Industry 4.0 connectivity and diagnostics
- Support for external devices and safety systems
The KR C5 ensures precise robot motion, fast commissioning, and long‑term reliability in high‑load palletizing environments.
Robot applications
| Parameter | Specification |
|---|---|
| Robot type | Industrial palletizing robot (PA version) |
| Axes | 5 |
| Payload | 240 kg |
| Maximum reach | 3,200 mm |
| Application class | Heavy‑duty palletizing / depalletizing |
| Mounting options | Floor |
| Design | Reinforced, palletizing‑optimized |
Accuracy & Motion Control
| Parameter | Specification |
|---|---|
| Motion control | High‑precision palletizing motion |
| Repeatability | High, suitable for heavy palletizing |
| Path behavior | Smooth, stable, repeatable |
| Vertical motion | Optimized for stacking operations |
| Duty cycle | Continuous industrial operation |
Speed & Dynamic Performance
Motion dynamics are optimized for stability and heavy‑load handling rather than maximum acceleration.
| Feature | Description |
|---|---|
| Axis motors | High‑torque industrial servo motors |
| Axis speed | Optimized for heavy palletizing cycles |
| Acceleration | Balanced for control and load stability |
| Trajectory control | Vertical and palletizing‑optimized paths |
| Load handling | Optimized for large and heavy products |
Controller & System
| Parameter | Specification |
|---|---|
| Controller | KUKA KR C5 |
| Control software | KUKA System Software (KSS) |
| Palletizing software | Supported |
| Fieldbus integration | Supported |
| Safety functions | Integrated industrial safety |
Typical Applications
- Heavy‑load palletizing
- Depalletizing of large products
- End‑of‑line automation
- Packaging and logistics
- Building materials palletizing
- Food, beverage, and industrial goods
Key Benefits
- Very high payload capacity (240 kg)
- Long reach (3,200 mm) for multi‑pallet layouts
- Stable and precise palletizing motion
- Optimized PA configuration for heavy loads
- Advanced KR C5 controller architecture
- Proven KUKA palletizing reliability
