KUKA KR25 R1840-3
Robot details

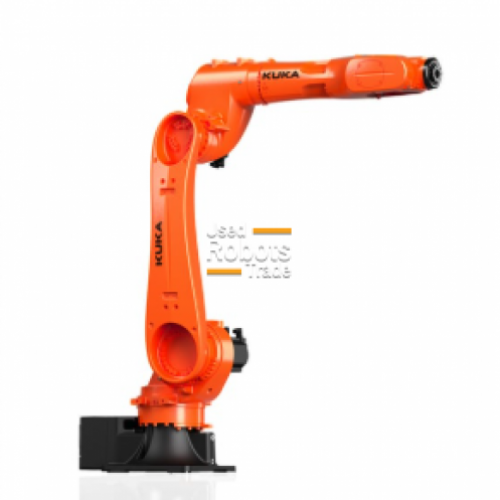

The KUKA KR 25 R1840‑3 is a 6‑axis industrial robot designed for applications that require a balanced combination of payload capacity, extended reach, and industrial reliability.
With a payload of 25 kg and a reach of 1,840 mm, the KR 25 R1840‑3 is ideally suited for handling, machine tending, assembly, and material transfer of medium‑weight components across wide work areas. Its rigid mechanical structure ensures high accuracy and repeatability, even when operating near maximum reach.
The robot is powered by the KUKA KR C5 controller, KUKA’s latest‑generation control platform, offering high motion performance, advanced connectivity, and a compact, modular system architecture for modern automated production environments.
Motion Concept and Performance
The KUKA KR 25 R1840‑3 is optimized for stable, fast, and repeatable industrial motion, making it suitable for continuous production cycles.
Key motion characteristics include:
- Stable motion under medium payload
- Fast point‑to‑point movements for reduced cycle times
- Smooth continuous path control
- High rigidity for accurate positioning at extended reach
The long reach allows efficient coverage of large workspaces while minimizing the need for additional external axes.
Controller & Software – KUKA KR C5
The KUKA KR C5 controller represents the latest evolution of KUKA’s industrial robot control technology and is designed to support high‑performance, digitally connected automation systems.
Controller Highlights:
- Compact and modular controller design
- High‑precision motion and path control
- Improved connectivity and Industry 4.0 readiness
- Support for external axes and complex automation cells
- Advanced diagnostics and integrated safety functions
The KR C5 ensures precise robot control, high system availability, and long‑term reliability.
Robot applications
| Parameter | Specification |
|---|---|
| Robot type | Industrial articulated robot |
| Axes | 6 |
| Payload | 25 kg |
| Maximum reach | 1,840 mm |
| Application class | Industrial automation |
| Mounting options | Floor, wall, ceiling |
| Design | Rigid, industrial‑grade |
| Parameter | Specification |
|---|---|
| Controller | KUKA KR C5 |
| Control software | KUKA System Software (KSS) |
| External axes support | Yes |
| Fieldbus integration | Supported |
| Safety functions | Integrated industrial safety |
