MOTOMAN YASKAWA MHP 45L
Robot details

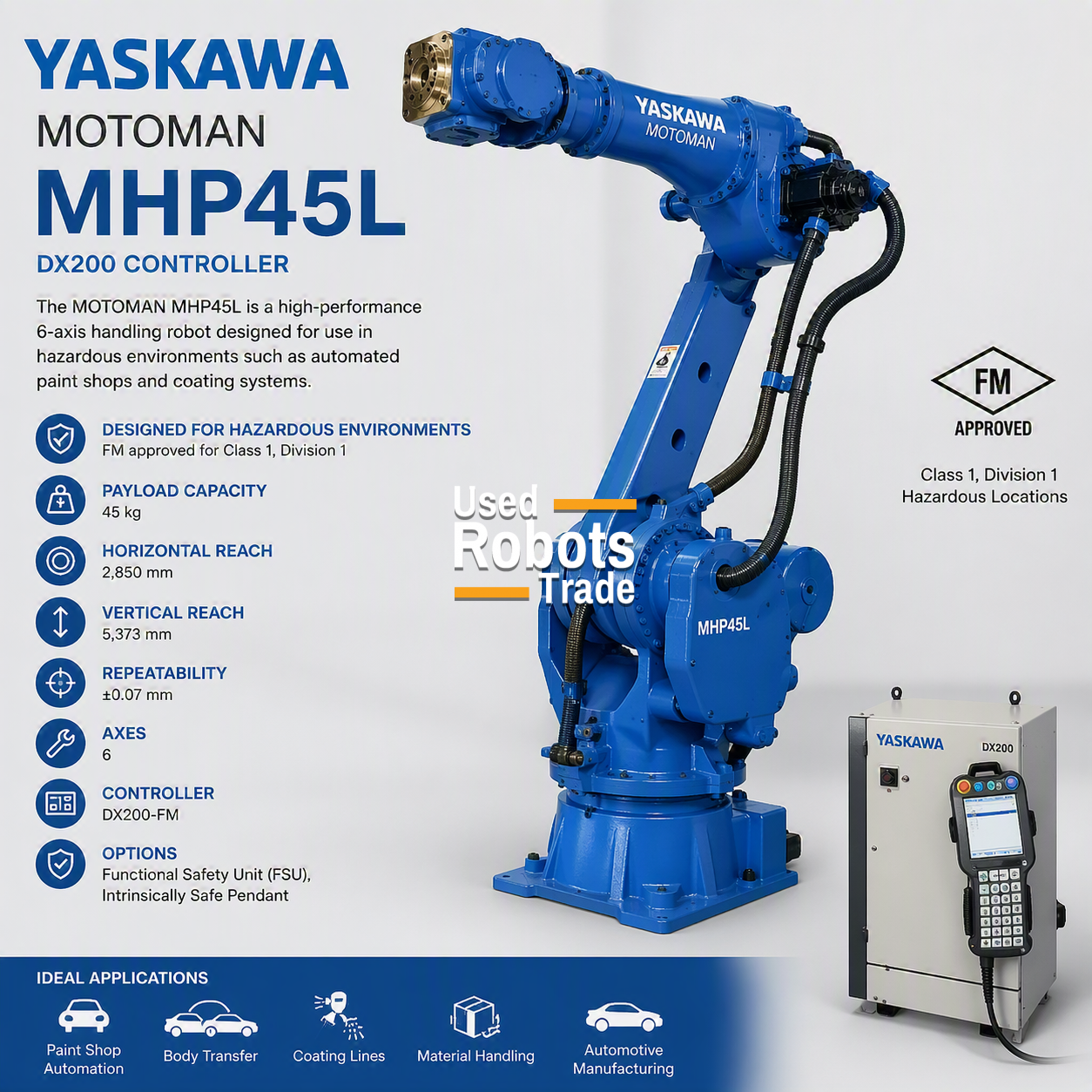

The YASKAWA MOTOMAN MHP45L is a specialized 6-axis handling robot designed specifically for hazardous and explosion-risk environments, particularly within automated paint shops and industrial coating systems. With a 45 kg payload capacity and an extended reach of up to 2,850 mm, the MHP45L eliminates the need for dedicated transfer equipment and enables efficient part movement throughout automated finishing lines.
The robot is controlled by the YASKAWA DX200-FM controller, which is Factory Mutual (FM/FM-C) approved for operation in hazardous areas classified as Class 1, Division 1 environments. This makes the MHP45L an ideal solution for automotive paint shops, coating plants, chemical industries, fuel-related facilities, and manufacturing environments where explosive vapors or gases may be present.
Available in both left-arm and right-arm configurations, the MHP45L provides exceptional flexibility, high-speed motion, and reliable operation when transferring car bodies, large components, and painted parts through automated production processes.
Main Applications
Paint Shop Automation
- Body transfer between painting stations
- Automated paint line handling
- Component transfer in coating systems
- Automotive paint processes
Hazardous Environment Handling
- ATEX-like hazardous production areas
- Chemical processing facilities
- Fuel and solvent environments
- Industrial finishing operations
Material Handling
- Large component transfer
- Production line automation
- Heavy workpiece movement
- Automated transport systems
Automotive Manufacturing
- Vehicle body handling
- Painted component transfer
- Assembly process support
- Production flow optimization
Industrial Finishing
- Powder coating lines
- Surface treatment systems
- Paint curing operations
- Finishing process automation
Key Advantages
✅ Payload capacity of 45 kg.
✅ Horizontal reach up to 2,850 mm.
✅ Vertical reach up to 5,373 mm.
✅ Designed for hazardous environments.
✅ FM/FM-C approved for Class 1 Division 1 areas.
✅ Eliminates the need for dedicated transfer equipment.
✅ Available in left-arm and right-arm versions.
✅ High-speed and highly accurate operation.
✅ Compatible with Functional Safety Unit (FSU).
✅ Proven Yaskawa reliability for paint shop automation.
DX200 Controller Features
- DX200-FM hazardous-environment controller
- Factory Mutual approved
- Easy robot programming
- Functional Safety Unit (FSU) option
- Safety-rated speed monitoring
- Safety-rated stop functions
- Soft axis limiting
- Space limiting functions
- Industrial communications support
- Reliable production control
Why Choose a Used or Refurbished YASKAWA MHP45L?
A refurbished YASKAWA MHP45L with DX200 controller provides a cost-effective solution for manufacturers operating automated paint lines and hazardous production environments.
Benefits
- Lower investment compared to a new system
- FM-certified hazardous area solution
- Proven reliability
- Reduced commissioning times
- Availability of spare parts
- Ideal for automotive paint shops
- Excellent return on investment
The MHP45L is particularly attractive for companies requiring safe and reliable automation within coating, painting, and hazardous industrial environments.
Robot applications
General Specifications
| Feature | Value | |
|---|---|---|
| Manufacturer | YASKAWA MOTOMAN | |
| Model | MHP45L | |
| Controller | DX200-FM | |
| Robot Type | 6-Axis Handling Robot | |
| Payload Capacity | 45 kg | |
| Horizontal Reach | 2,850 mm | |
| Vertical Reach | 5,373 mm | |
| Repeatability | ±0.07 mm | |
| Number of Axes | 6 | |
| Hazardous Area Certification | FM/FM-C Class 1 Division 1 |
Hazardous Environment Features
| Feature | Specification |
|---|---|
| Explosion-Risk Area Operation | Yes |
| FM Approval | Yes |
| Class 1 Division 1 | Yes |
| Intrinsically Safe Pendant Available | Yes |
| Functional Safety Unit (FSU) | Optional |
| Paint Shop Optimized | Yes |
