ABB IRB 6750 S 215/3.90

Robot details

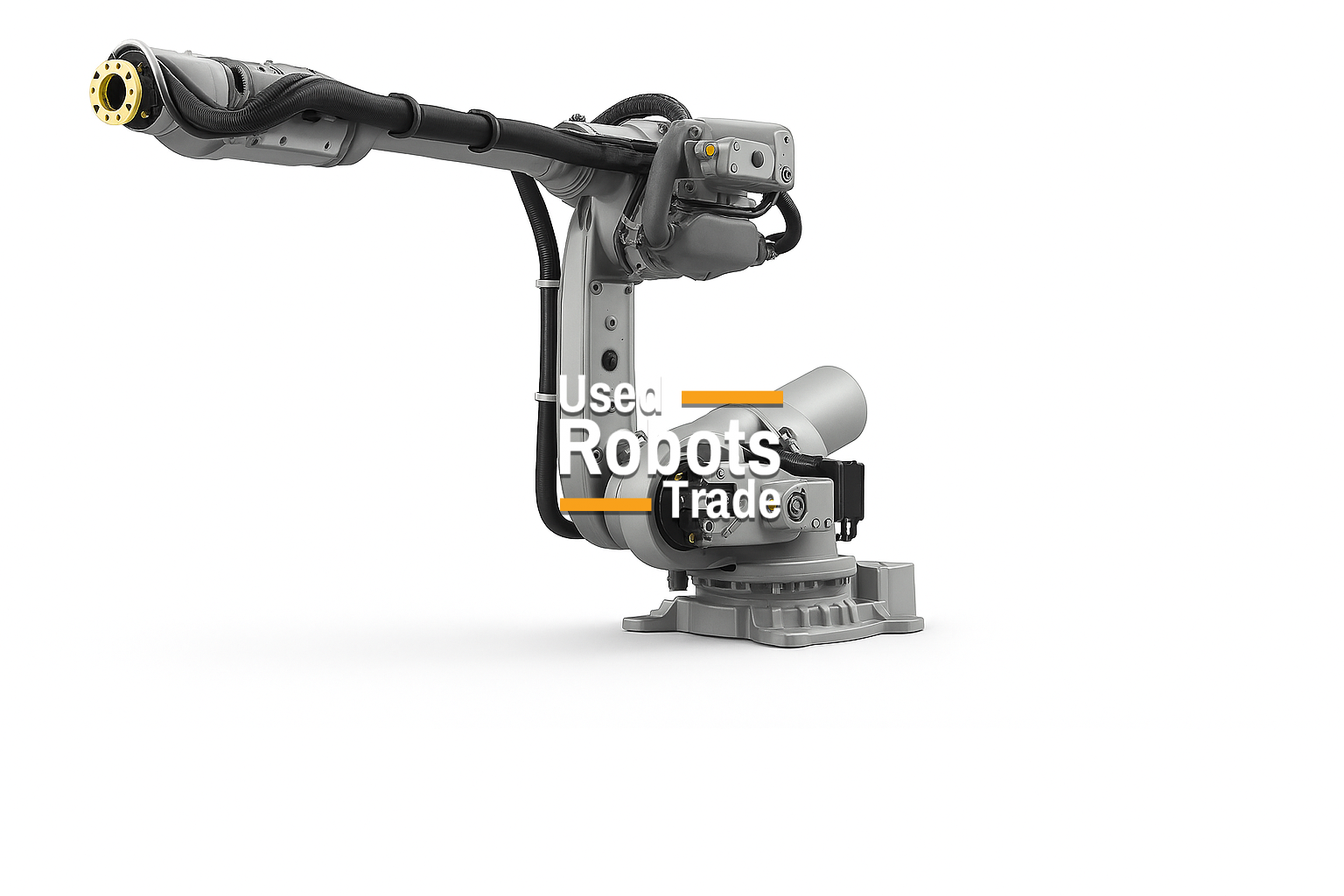

The ABB IRB 6750 S‑215/3.90 is an extra‑heavy‑duty 6‑axis industrial robot, developed in the Shelf (S) configuration for applications requiring very long reach, high payload capacity, and overhead or side mounting. This version is ideal for large production layouts where maximum floor space utilization and wide operational coverage are critical.

With a maximum payload of 215 kg and an exceptional reach of 3,900 mm, the IRB 6750 S‑215/3.90 provides one of the largest working envelopes in ABB’s robot portfolio. Its reinforced mechanical structure and optimized arm geometry ensure high rigidity, smooth motion, and stable positioning accuracy, even when operating at extreme reach under continuous high‑duty cycles.

Powered by the ABB IRC5 controller, the robot benefits from ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movement, and optimized cycle times despite the challenging payload‑to‑reach ratio. The shelf‑mounted design allows handling of oversized components from above or from the side, making it ideal for automotive body shops, large press lines, and oversized structure manipulation.

The ABB IRB 6750 S‑215/3.90 is the optimal solution for manufacturers requiring ultra‑long‑reach, heavy‑payload automation with proven industrial reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6750 S‑215/3.90

• Robot type: 6‑axis articulated heavy‑payload industrial robot (Shelf version)
• Maximum payload: 215 kg
• Maximum reach: 3,900 mm
• Repeatability: ±0.06 mm
• Number of axes: 6
• Robot weight: approx. 3,000 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation type: Shelf / overhead or side mounting

TYPICAL APPLICATIONS

• Automotive body‑in‑white (BIW) handling
• Press tending and long transfer lines
• Large structure and frame manipulation
• Foundry and casting automation
• Oversized component palletizing
• Heavy industrial transfer systems
• Production layouts with strict floor space constraints
