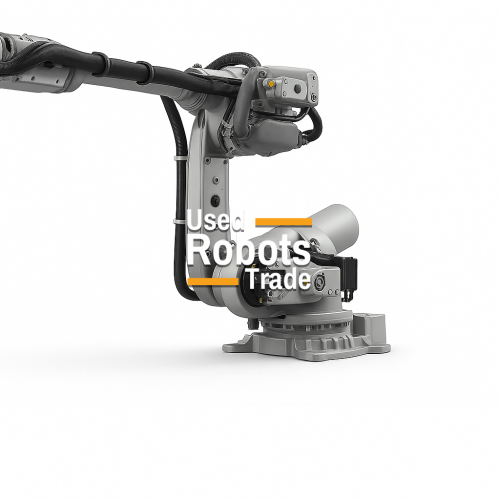

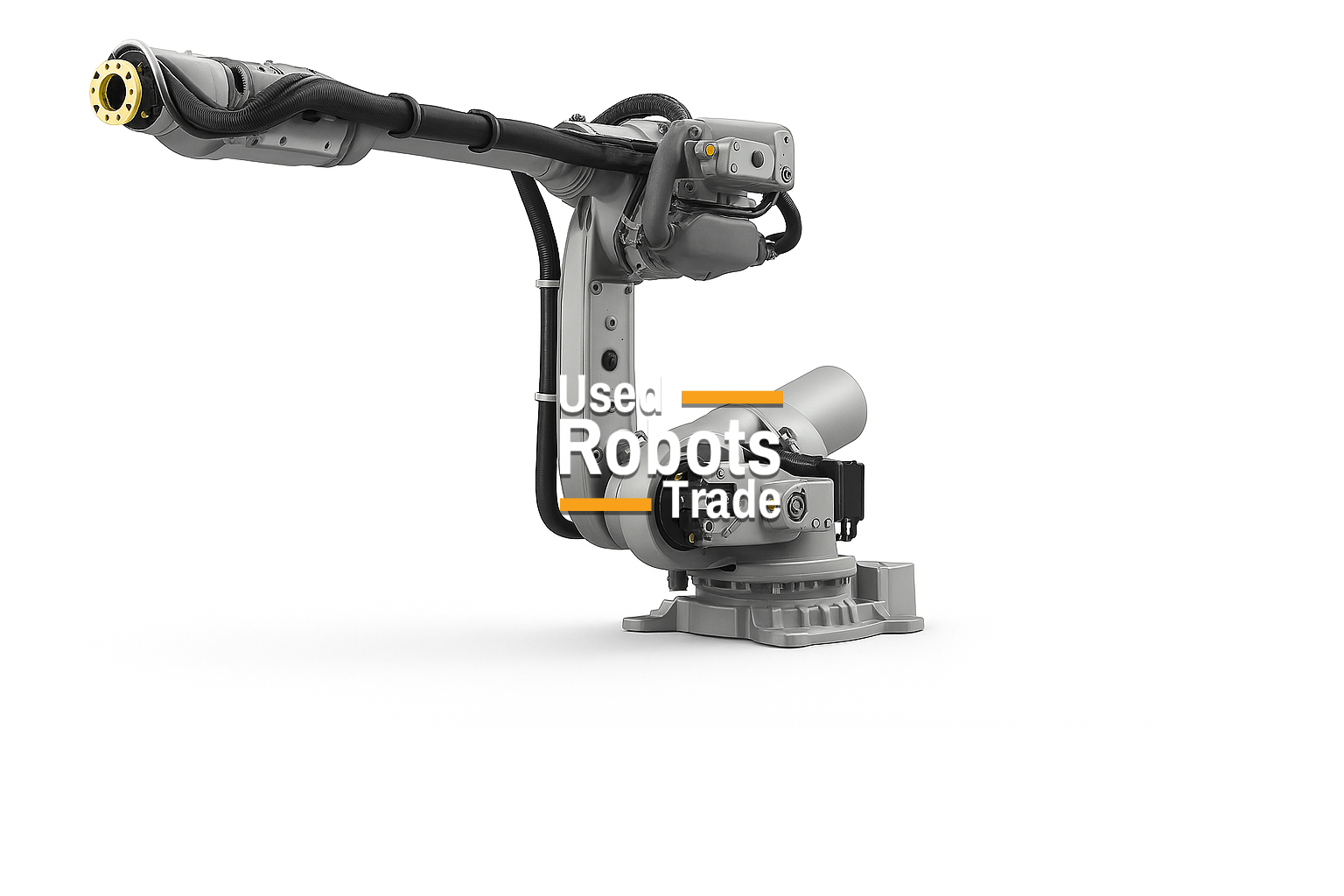

ABB IRB 6750 S 220/3.60 LID

Robot details

The ABB IRB 6750 S‑220/3.60 LID is an extra‑heavy‑duty 6‑axis industrial robot, designed in the Shelf (S) configuration and equipped with LID (Load Integrated Drive) technology for superior performance, compact integration, and long‑term reliability. This advanced drive concept integrates the main drive directly into the robot structure, reducing external components and improving load distribution.

With a maximum payload of 220 kg and an extended reach of 3,600 mm, the IRB 6750 S‑220/3.60 LID is ideal for handling very large and heavy components across wide working areas, particularly where overhead or side mounting is required. Its reinforced mechanical structure ensures high rigidity, smooth motion, and stable path accuracy, even under extreme reach conditions and continuous high‑duty cycles.

Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movements, and optimized cycle times despite heavy loads and long reach. The combined advantages of Shelf mounting and Load Integrated Drive provide excellent floor space optimization, simplified maintenance, and reduced total cost of ownership.

The ABB IRB 6750 S‑220/3.60 LID is the ideal solution for manufacturers requiring long‑reach, shelf‑mounted, extra‑heavy automation with state‑of‑the‑art drive technology and industrial robustness.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6750 S‑220/3.60 LID

• Robot type: 6‑axis articulated extra‑heavy‑payload industrial robot (Shelf version)
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 220 kg
• Maximum reach: 3,600 mm
• Repeatability: ±0.06 mm
• Number of axes: 6
• Robot weight: approx. 3,000 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation type: Shelf / overhead or side mounting with compact LID design

TYPICAL APPLICATIONS

• Automotive body‑in‑white (BIW) handling
• Press tending and long transfer lines
• Large structure and frame manipulation
• Foundry and casting automation
• Oversized component palletizing
• High‑duty industrial transfer systems
• Production environments with strict floor space constraints
