ABB 6750 S 270/3.20 LID

Robot details

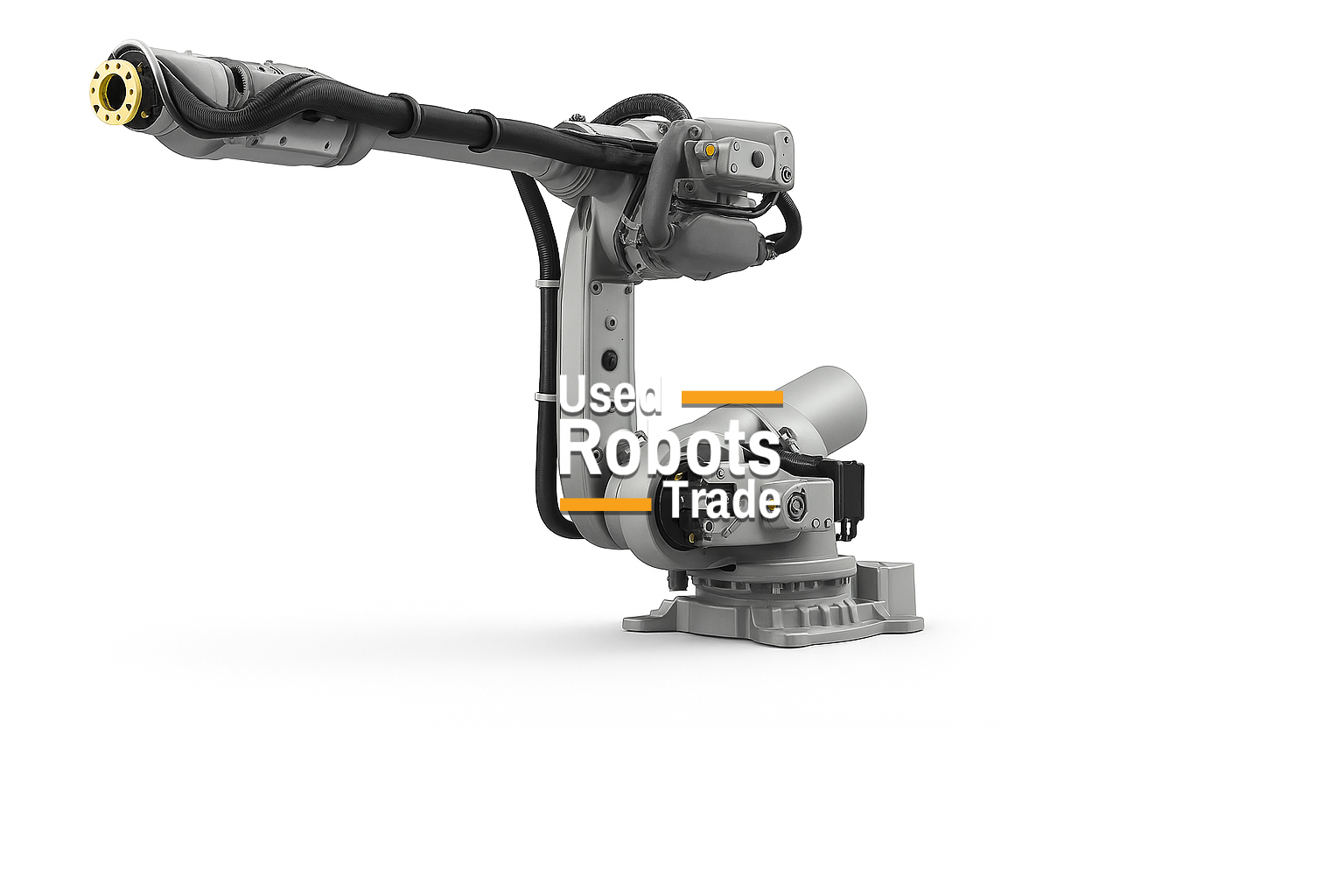

The ABB IRB 6750 S‑270/3.20 LID is an extra‑heavy‑duty 6‑axis industrial robot, designed in the Shelf (S) configuration and equipped with LID (Load Integrated Drive) technology for advanced high‑payload automation. This architecture integrates the main drive directly into the robot structure, reducing external components, improving rigidity, and simplifying cell integration.

With a maximum payload of 270 kg and a reach of 3,200 mm, the IRB 6750 S‑270/3.20 LID is ideally suited for handling very large and heavy components over wide work areas, especially where overhead or side mounting is required. The reinforced arm and load‑optimized kinematics provide smooth motion, high positional stability, and consistent accuracy, even under continuous high‑duty operation.

Powered by the ABB IRC5 controller, the robot takes full advantage of ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring precise trajectory control, synchronized axis movements, and optimized cycle times. The combination of Shelf mounting and Load Integrated Drive allows maximum floor space optimization, improved energy efficiency, and easier maintenance.

The ABB IRB 6750 S‑270/3.20 LID is the ideal solution for manufacturers requiring powerful, long‑reach, shelf‑mounted automation with maximum reliability and modern drive technology.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6750 S‑270/3.20 LID

• Robot type: 6‑axis articulated extra‑heavy‑payload industrial robot (Shelf version)
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 270 kg
• Maximum reach: 3,200 mm
• Repeatability: ±0.06 mm
• Number of axes: 6
• Robot weight: approx. 3,000 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation type: Shelf / overhead or side mounting with compact LID layout

TYPICAL APPLICATIONS

• Automotive body‑in‑white (BIW) handling
• Press tending and transfer lines
• Large structure and frame manipulation
• Foundry and casting automation
• Heavy palletizing of oversized loads
• High‑duty industrial transfer systems
• Production layouts with optimized floor space
