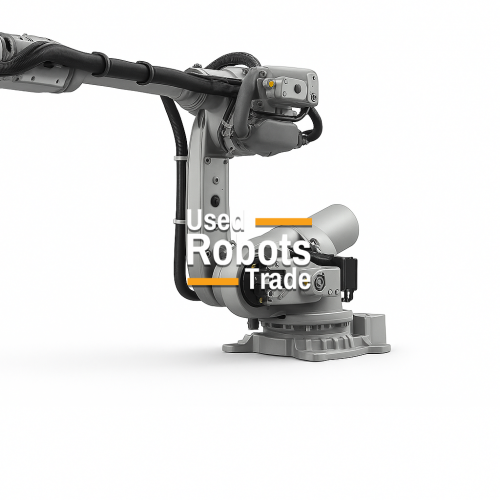

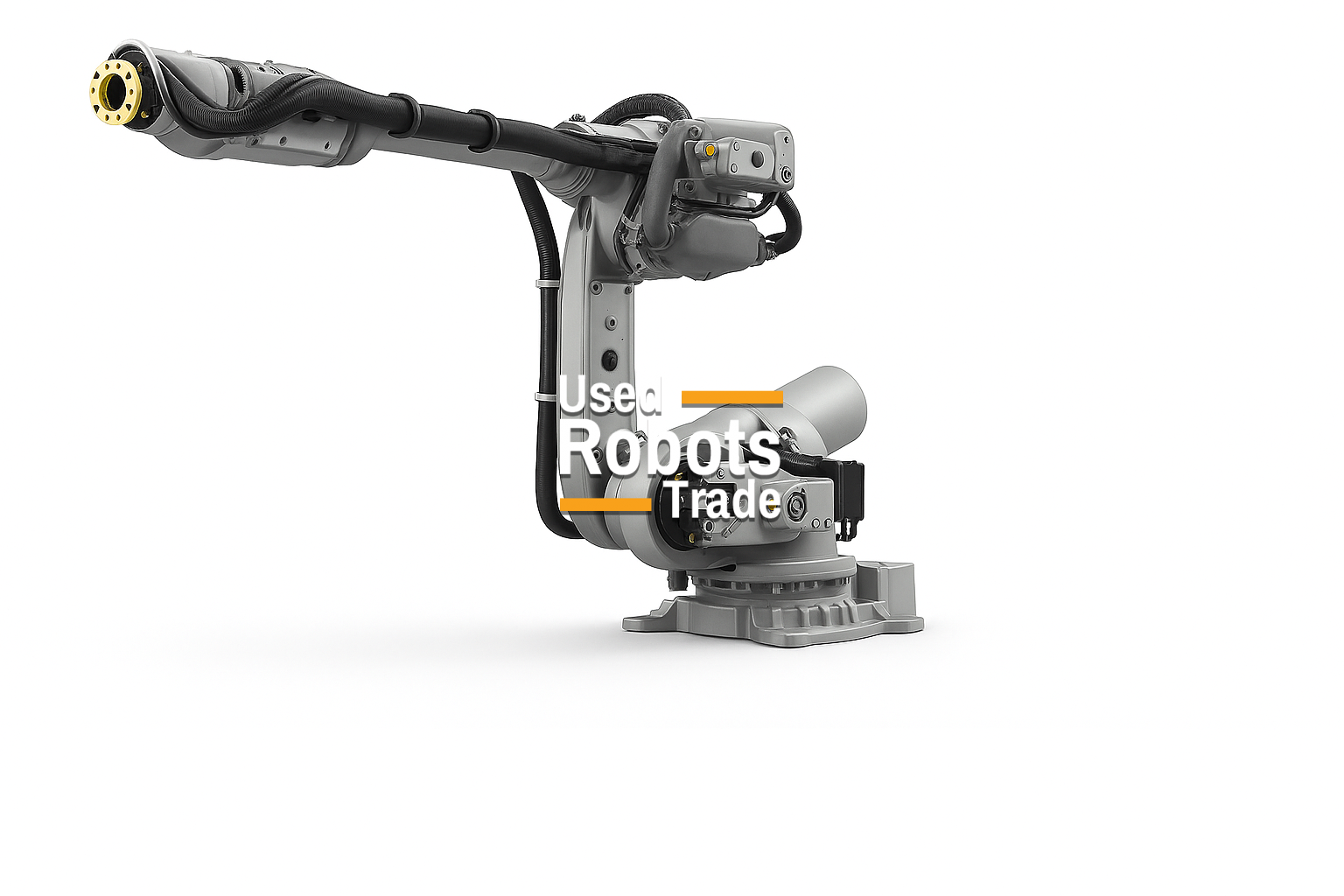

ABB IRB 6750 S 270/3.60

Robot details

The ABB IRB 6750 S‑270/3.60 is a heavy‑duty 6‑axis industrial robot designed in the Shelf (S) configuration to handle large and heavy components over extremely wide working envelopes. This version is ideal for production layouts that require overhead or side mounting, allowing efficient automation while keeping floor space clear.

With a maximum payload of 270 kg and an extra‑long reach of 3,600 mm, the IRB 6750 S‑270/3.60 is engineered for very large parts and extended transfer distances. Its reinforced mechanical structure ensures high rigidity, smooth motion, and stable accuracy, even when operating at full reach and under continuous high‑duty cycles.

Powered by the ABB IRC5 controller, the robot leverages ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, delivering precise path control, synchronized axis movements, and optimized cycle times despite the demanding payload and reach combination. The shelf‑mounted design enables handling operations from above or from the side, making it especially suited for automotive body handling, press lines, and large structure manipulation.

The ABB IRB 6750 S‑270/3.60 is the ideal solution for manufacturers seeking long‑reach heavy automation with maximum layout flexibility and industrial reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6750 S‑270/3.60

• Robot type: 6‑axis articulated heavy‑payload industrial robot (Shelf version)
• Maximum payload: 270 kg
• Maximum reach: 3,600 mm
• Repeatability: ±0.06 mm
• Number of axes: 6
• Robot weight: approx. 3,000 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation type: Shelf / elevated mounting (above or side of production area)

TYPICAL APPLICATIONS

• Automotive body‑in‑white (BIW) handling
• Press tending and transfer systems
• Large structure and frame handling
• Foundry and casting automation
• Oversized part palletizing and depalletizing
• High‑duty industrial transfer lines
• Production cells requiring maximum floor space optimization
