Fanuc M10iA/12
Robot details

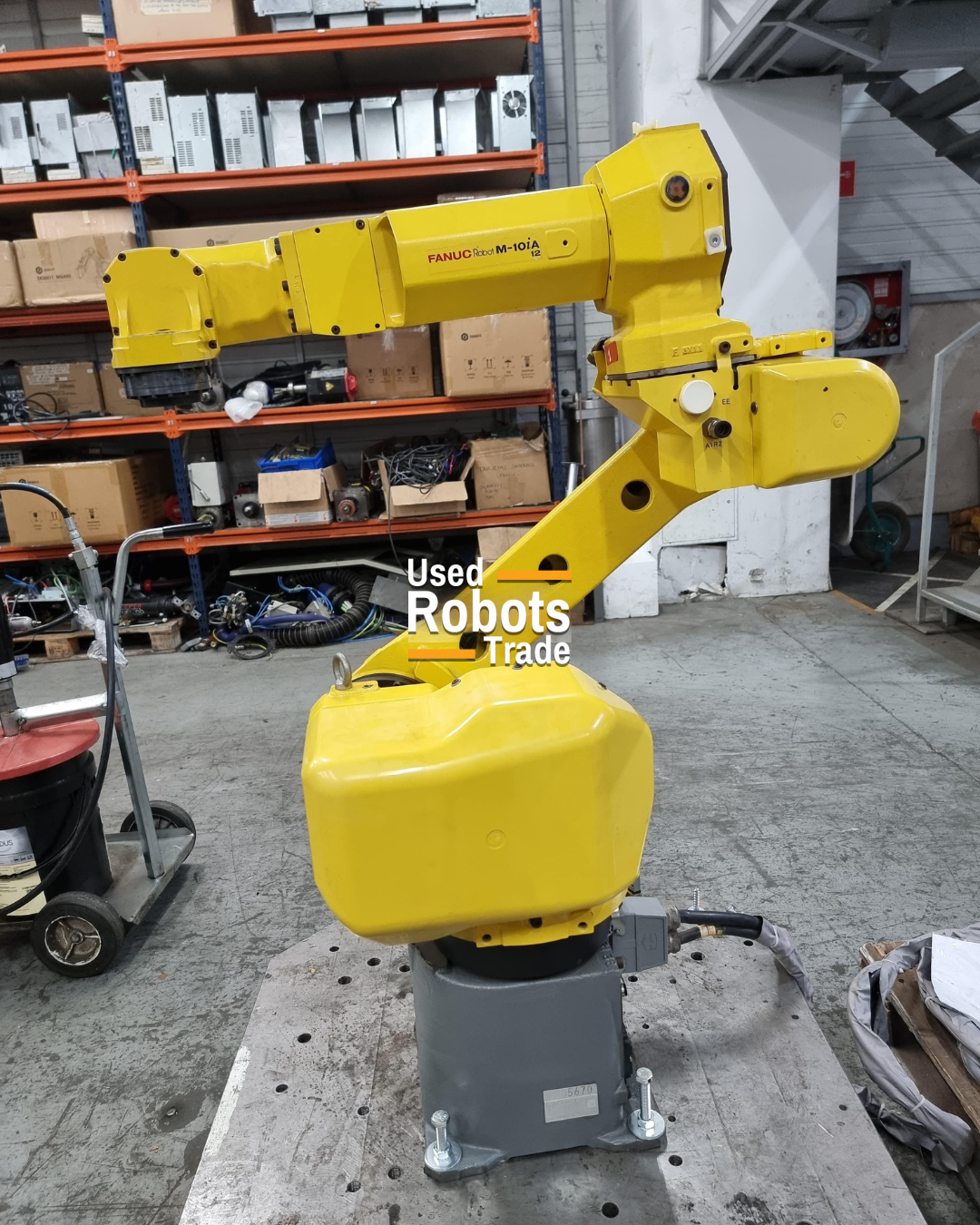

The FANUC M-10iA/12 R-30iB is a compact 6-axis industrial robot designed for applications such as material handling, assembly, pick & place, and dispensing. It offers a payload capacity of up to 12 kg and a maximum reach of 1,420 mm, making it a versatile solution for production lines requiring high speed and precision. Its design features a hollow arm structure, allowing internal cable routing to reduce damage risks, simplify maintenance, and lower costs.
Equipped with the advanced R-30iB controller, it supports integration with 2D vision systems and offers flexible mounting options on the floor, wall, or ceiling, even at an angle. With a repeatability of ±0.08 mm, it is ideal for environments demanding fast cycles and high reliability.
Robot applications
- Press tending
- Loading and unloading of parts
- Machining
- Handling of parts
- Arc welding
- Palletising
- Measurement
- Assembly of parts
Main specifications
Maximum Load of Robot: 12 kg
Number of axis: 6
Maximum horizontal reach: 1420 mm
Repeatability: ± 0.03 mm
Controller: R-30iB
Motion range (°)
Axis J1: 340° (360)°
Axis J2: 250°
Axis J3: 445°
Axis J4: 380°
Axis J5: 380°
Axis J6: 720°
Maximum speed (°/s)
Axis J1: 230°/s
Axis J2: 225°/s
Axis J3: 230°/s
Axis J4: 430°/s
Axis J5: 430°/s
Axis J6: 630°/s
Robot applications
Handling
Assembly
Pick and Place
