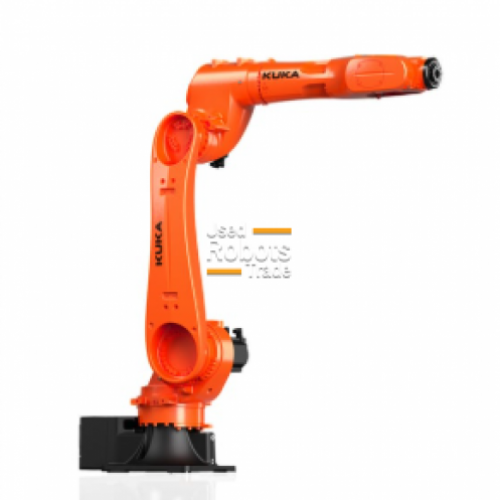

KUKA KR35 R1840-3
Robot details
The KUKA KR 35 R1840‑3 is a 6‑axis industrial robot designed for applications that require a higher payload capacity, extended reach, and robust industrial performance in demanding production environments.
With a payload of 35 kg and a reach of 1,840 mm, the KR 35 R1840‑3 is well suited for handling, machine tending, assembly, and material transfer of medium‑weight components. Its rigid mechanical structure ensures high accuracy, repeatability, and stability, even when operating at full payload and long reach.
The robot is powered by the KUKA KR C5 controller, KUKA’s latest‑generation control platform, delivering high‑performance motion control, advanced connectivity, and compact system architecture for modern automation systems.
Motion Concept and Performance
The KUKA KR 35 R1840‑3 is optimized for industrial speed, precision, and load stability, making it ideal for continuous production processes.
Key motion characteristics include:
- Stable and repeatable motion under high payload
- Fast point‑to‑point movements for reduced cycle times
- Smooth continuous path control
- High rigidity for accurate positioning at extended reach
The long reach allows efficient coverage of large work areas while minimizing the need for additional linear axes.
Controller & Software – KUKA KR C5
The KUKA KR C5 controller represents the latest evolution of KUKA’s industrial robot control technology and is designed for high‑performance and digitally connected production environments.
Controller Highlights:
- Compact and modular controller design
- High‑precision motion and path control
- Improved connectivity and Industry 4.0 readiness
- Support for external axes and complex automation cells
- Advanced diagnostics and safety functions
The KR C5 ensures precise robot control, high system availability, and long‑term reliability.
Robot applications
| Parameter | Specification |
|---|---|
| Robot type | Industrial articulated robot |
| Axes | 6 |
| Payload | 35 kg |
| Maximum reach | 1,840 mm |
| Application class | Industrial automation |
| Mounting options | Floor, wall, ceiling |
| Design | Rigid, industrial‑grade |
| Parameter | Specification |
|---|---|
| Controller | KUKA KR C5 |
| Control software | KUKA System Software (KSS) |
| External axes support | Yes |
| Fieldbus integration | Supported |
| Safety functions | Integrated industrial safety |
